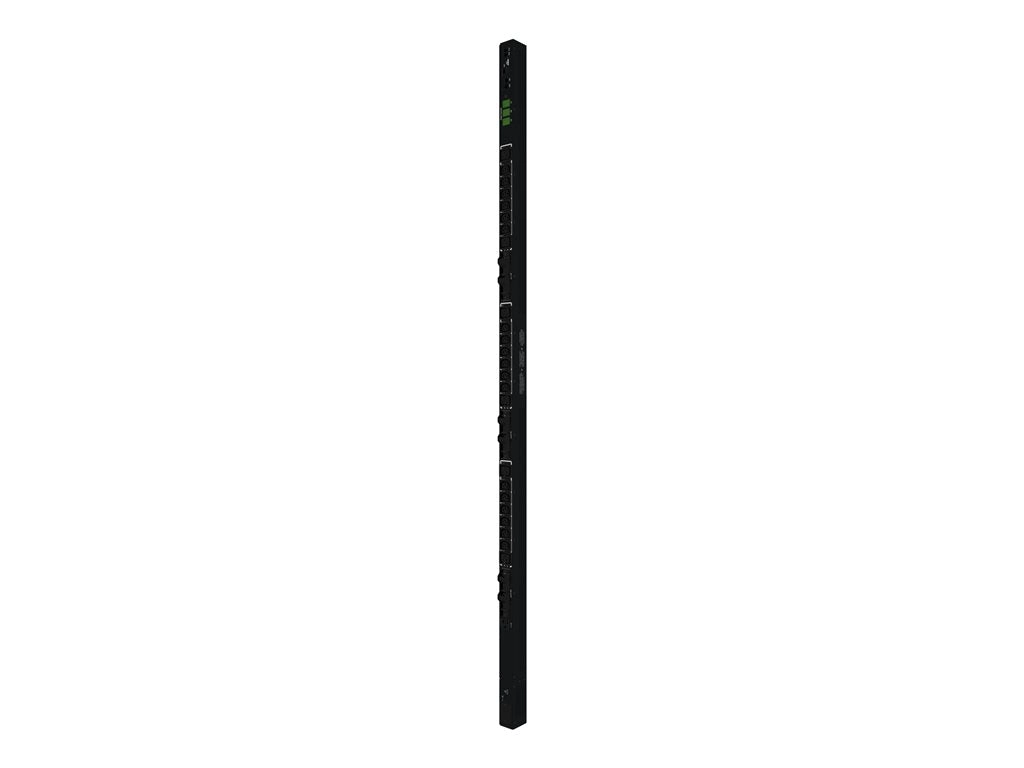

Server Technology PRO1 Switched PDU C1W24VS-DCFA13A1 - Master - power distribution unit (rack-mountable) - AC 208 V - 8.6 kW - 3-phase delta - Ethernet 10/100, RS-232 - input: NEMA L15-30P - output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13)

• Network monitoring
  Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• Auto-flip current display
  Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
• Branch circuit protection
  This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
• Outlet control
  On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
• High retention locking outlets
  Receptacles have high retention and are compatible with P-lock type power cords.

The Server Technology Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched "Master"PDU can be connected to a Switched "Link"PDU to extend the network access to the redundant or secondary power feed.
